Insertion tools and chisels for the hydraulic hammer

hydraulictools

For use in a quarry, in foundation, trench and road construction we produce large chisels and insertion tools, precisely adjusted to the transmission of energy due to striking mechanisms. Grooves with milled oil pockets for optimal lubrication and with optimal seat in the hammer bushing for most difficult applications.

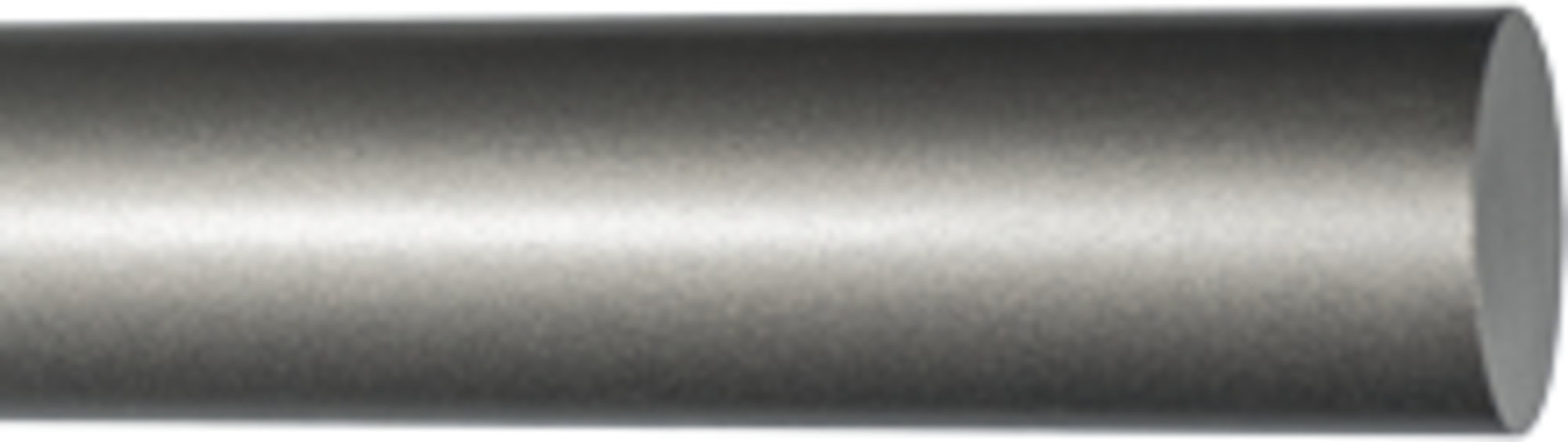

Blunt tool

The versatile blunt tool. Ideal for breaking stone blocks, for crushing large rock pieces in quarries and for crushing slag. Also suitable for ground compression.

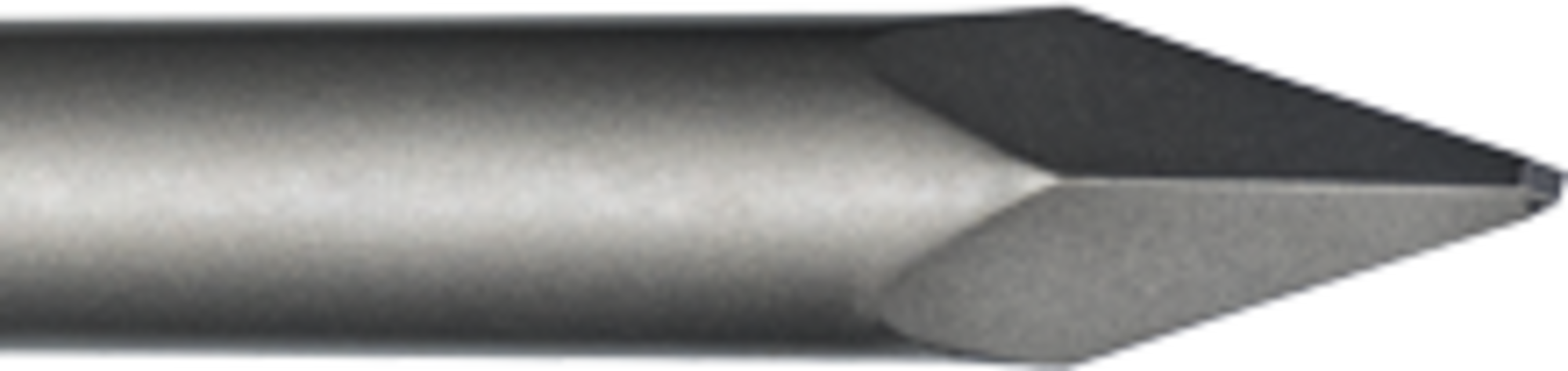

Moil point

General use for demolition work and in quarries. Ideally suited for breaking up slag in steel mills (industrial application) and demolishing foundations. Roadway drivage and roadway shots in mining. The tip is pyramidally forged for wedge action during application.

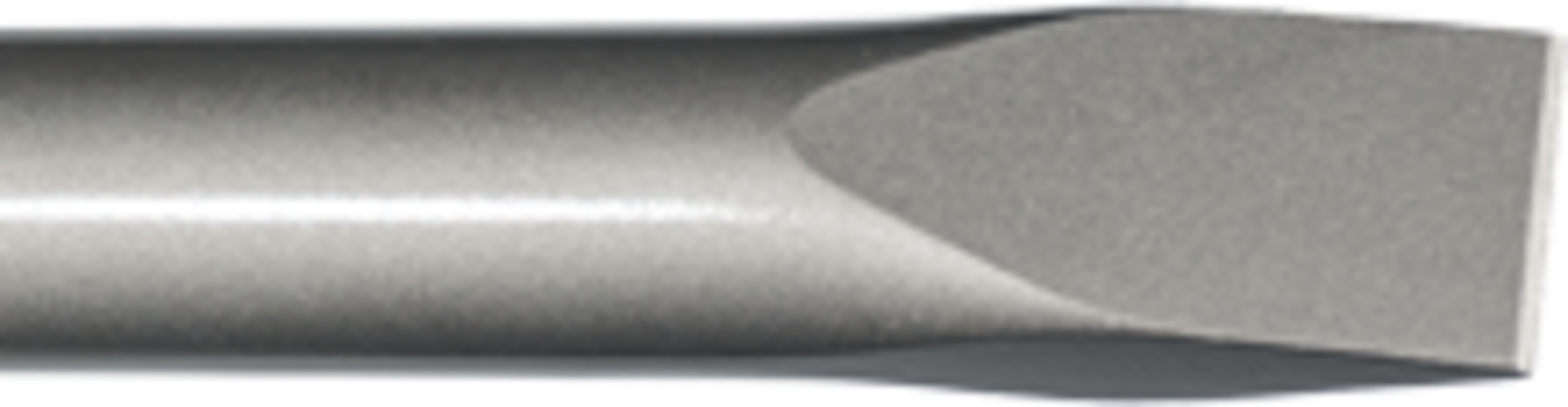

Flat chisel

General use with additional cutting action. Also optimal for drawing pits in rocky subsoil and separating rock slabs. The cutting edge is transverse (cross) to shovel boom. 90° indexed also available!

Wide chisel

General use with extra large width and additional cutting action. For breaking up black top, shaking out foundry ladles and demolishing concrete and reinforced concrete. The cutting edge is transverse (cross) to shovel boom. 90° indexed also available!

Asphalt cutter

General use with extra long and thin blade and additional cutting action. For cutting black top or soft material. The cutting edge stands parallel to shovel boom. 90° indexed also available!

Pipe driver

For driving in pipes into the ground. Made to dimensions.

Post hole driver/Ramming tool

For beating poles and pipes into the ground. Made to dimensions. Outside diameter max. 250 mm, inside diameter max. 200 mm.

Elephant foot

For demolishing reinforced concrete areas, crushing large rock pieces in quarries. Can also be used for ground compression. Made to dimensions. Working end diameter max. 250 mm.

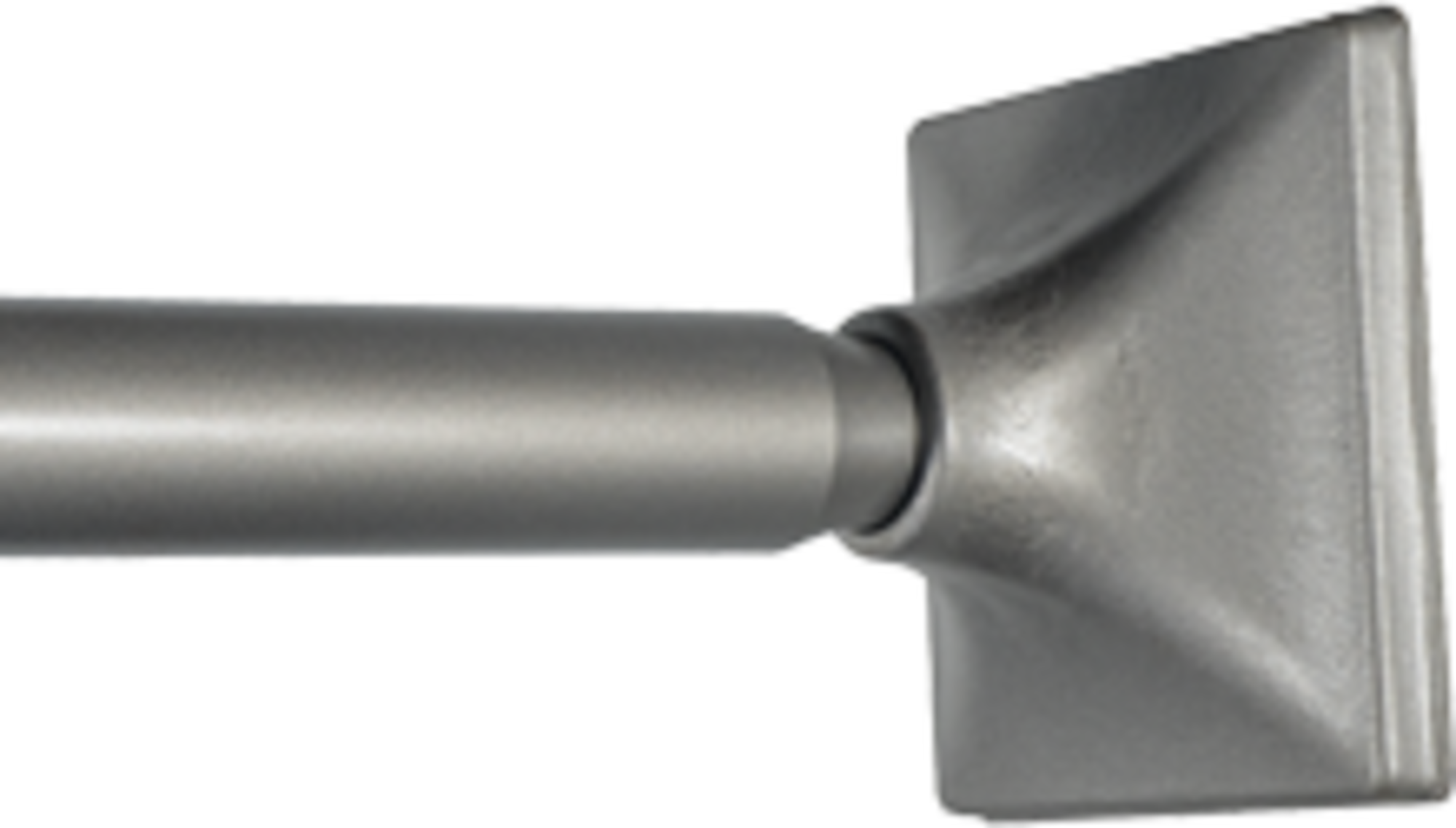

Tamping tool

For compression of ground and gravel. With forged plate 200 x 200 mm. Incl. Adapter for shank ends up to max. 75 mm diameter.

Percussion buster

For all demolition work in concrete and very tough rock. For special demolition work with high cracking action. Pyramidally forged, rounded tip. For shank ends from 55 mm to 180 mm.

Moil point with dust grooves

An alternative for very dusty work. General use in demolition work, in quarries and demolishing foundations. Pyramidally forged tip with 4 dust grooves. For shank ends from 70 mm.

Moil point with long dust grooves

An alternative for especially dusty work. General use in demolition work, in quarries and demolishing foundations. Pyramidally forged tip with 4 long dust grooves. For shank ends from 110 mm to 130 mm.

We manufacture according to your wishes!

Please just contact us for further varieties, types, lengths and versions!
T +49 2191 3715-0

SOLIDA insertion tools are only intended and suitable for use as designed in machines equipped with matching tool carriers. Please, observe also the machine manufacturers’ operating instructions and safety notes. SOLIDA assumes no liability for misuse of this nature.
